On-Site PWHT Made Easy: 40KVA Air-Cooled Induction Heater for Reliable Welding Stress Relief
| Nguồn gốc | Quảng Đông, Trung Quốc |
|---|---|
| Hàng hiệu | Canroon |
| Chứng nhận | CE ISO9001 |
| Số mô hình | CR2000 |
| Số lượng đặt hàng tối thiểu | 1 |
| Giá bán | Negotiable price |
| chi tiết đóng gói | hộp carton Hộp gỗ |
| Thời gian giao hàng | 3-5 ngày |
| Điều khoản thanh toán | L/C, T/T, Liên minh phương Tây, PayPal |
| Khả năng cung cấp | 2000 miếng/miếng/tuần |
Thông tin chi tiết sản phẩm
| Loại máy | Máy sưởi ấm cảm ứng | Trọng lượng (kg) | 60 |
|---|---|---|---|
| Video hướng dẫn đi | Cung cấp | Thành phần cốt lõi | Plc, ổ trục, thiết bị |
| Phương pháp làm mát | Làm mát không khí | Đường kính ống | 200-800mm |
| Nhiệt độ sưởi ấm | có thể đạt tới 788 ℃ | Tính thường xuyên | 2,5-35kHz |
| Tính di động | di chuyển với bánh xe vạn năng | Ứng dụng | PWHT/xử lý nhiệt sau hàn cho thép và thép không gỉ |
| Làm nổi bật | 40KVA air-cooled induction heater,welding stress relief induction heater,on-site PWHT induction heating system |
||
Mô tả sản phẩm
Canroon induction heating machine price air cooling 40KVA post weld heat treatment
Brand: Canroon(China manufacturer)
Power:40KVA (also supply 5KVA, 10KVA, 80KVA, 120KVA)
Frequency:3-35kHZ
Heating temperature: can be high as 788℃
Voltage: 3phase, 380-460V, 50/60HZ,
Suitable pipe size: 200-800mm diameter, 25-60mm thickness,
cooling system: air cooling
Application industries: offshore platform, power station, oil and gas pipeline construction, etc
Applications: PWHT/ post weld heat treatment, aslo efficient for welding preheat, joint anti-corrosion coating
Features: movable, accurate temperature control, digital control, self-fault diagnosis, modular design, etc
Details of Canroon induction heating machine price air cooling 40KVA post weld heat treatment
Technical parameters of Canroon induction heating machine price air cooling 40KVA post weld heat treatment
| Model | Temperature | Input Power | Input | Output | Dimension |
Weight
|
| CR2000-040 | 788℃ | 40KVA |
3-phases 380V-460V 50-60Hz 50-61A |
35KW 3-35KHz Duty Cycle: 100% |
H:762mm W:544mm L:730mm |
115kg |
| CR2000-080 | 788℃ | 80KVA |
3-phases 380V-460V 50-60Hz 100-121A |
72KW 2.3-35KHz Duty Cycle: 100% |
H:845mm W:592mm L:801mm |
190kg |
| CR2000-120 | 788℃ | 120KVA |
3-phases 380V-460V 50-60Hz 150-181A |
108KW 2.5-35KHz Duty Cycle: 100% |
H:845mm W:592mm L:801mm |
Details of Canroon induction heating machine price air cooling 40KVA post weld heat treatment

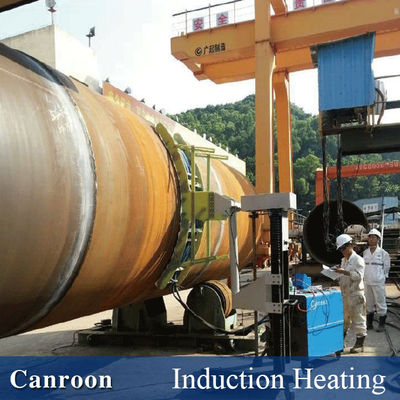

applied in pipe post weld heat treatment/PWHT:
Post weld heat treatment for steel pipes:
Post weld heat treatment for stainless steel pipes:
Different induction heating machine designed for different applications
C type inductor(usually for pipe welding preheat), blanket type inductor(usually for pipe welding preheat, PWHT),
plate type inductor(usually for pipe welding preheat), split core type inductor(manual & hydraulic)(usually for
joint anti-corrosion coating).
Accessories for Canroon 40KVA Air-Cooled Induction Heating Machine for PWHT
We provide a comprehensive range of accessories to support your post-weld heat treatment (PWHT) operations, including:
-
Thermocouples
-
Thermocouple welding machines
-
Digital temperature recorders
-
Remote switchgear
-
Output extension cables
-
Insulation blankets
Our complete solutions help save you time and ensure operational readiness upon delivery.
Key Advantages of Canroon 40KVA Air-Cooled Induction Heating Machine for PWHT
-
Precise Control
Equipped with an intuitive display panel for real-time monitoring of working parameters. Includes a temperature recorder for PWHT curve tracking and printing capabilities. -
Multiple Control Modes
Offers both temperature and power control modes for enhanced adaptability and accuracy across various applications. -
Comprehensive Fault Recording
Automatic fault code display and recording system triggers protective actions (e.g., shutdown) in cases of open-loop output or short circuits. -
Easy Maintenance
Modular design ensures straightforward and cost-effective maintenance. -
Self-Diagnosis Function
Instant fault code display with detailed explanations provided in the user manual for quick troubleshooting. -
High Energy Efficiency
Converts up to 90% of energy into usable heat, significantly reducing heating time and cycle duration compared to conventional methods. -
Uniform Heating Performance
Internal heat generation via alternating electrical current ensures consistent temperature distribution across the entire heating zone.
Packaging & Shipping
All induction heating machines are securely packed in wooden cases to guarantee safe transportation. We support shipping via air or sea freight according to your requirements.
Building Success Together: Our Partnership Ecosystem
1. A Culture of Quality & Innovation
Your challenges drive our R&D. We are committed to delivering future-proof products that set new industry standards.
2. A Service Experience You Can Trust
We combine top-tier product quality with dependable logistics and flexible solutions, ensuring your operations run smoothly.
3. Support That Extends Beyond the Sale
From installation training and warranty services to cost-effective spare parts, we are invested in your long-term productivity and satisfaction.
4. Collaborative Consulting for Growth
Let us help you scale. We offer expert consulting in technology, factory planning, and market expansion strategies to achieve shared success.
